Additional information
| Body | Grey / Ductile Cast Iron |
|---|---|
| Stud | Galvanized Steel |
| Nut | Galvanized Steel |
| Gasket | NBR |

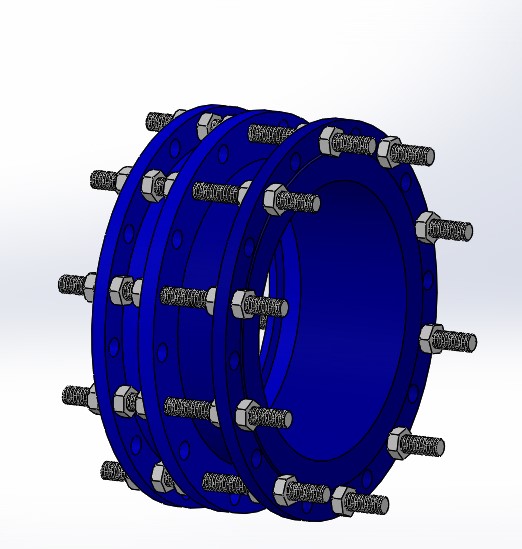

Dismantling Joints
| Nominal Diameter | 100-1200 DN(mm) |
| Working Pressure | 10 16 (bar) |
| Shell Testing Pressure | 16 24 (bar) |
| Seal Testing Pressure | 11 17.6 (bar) |
| Max Media Temperature | <80oC |
| Suitable Media | Water/ Sewage |

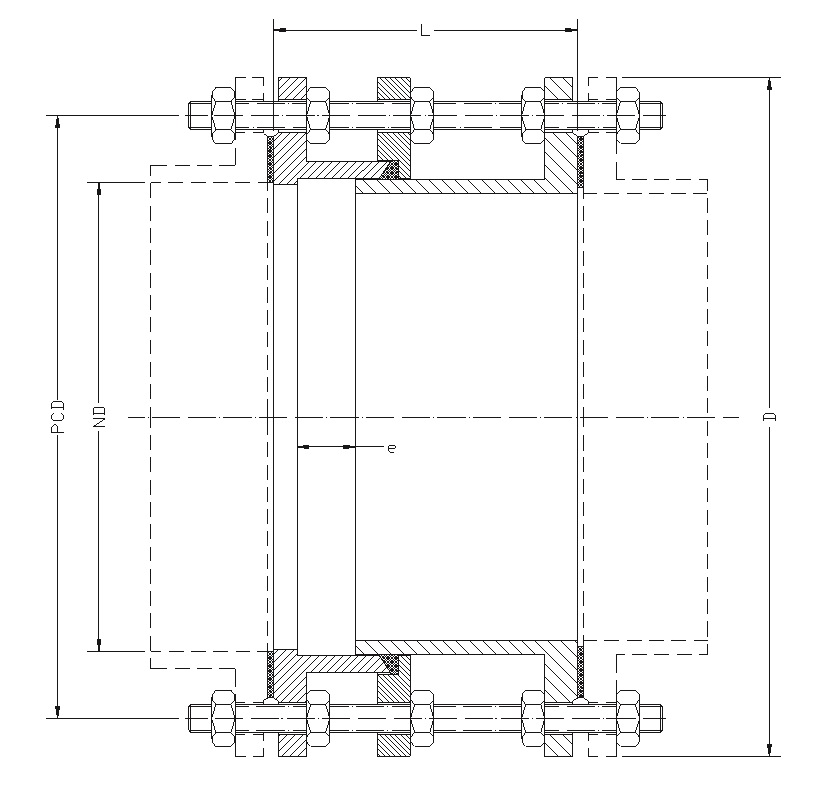

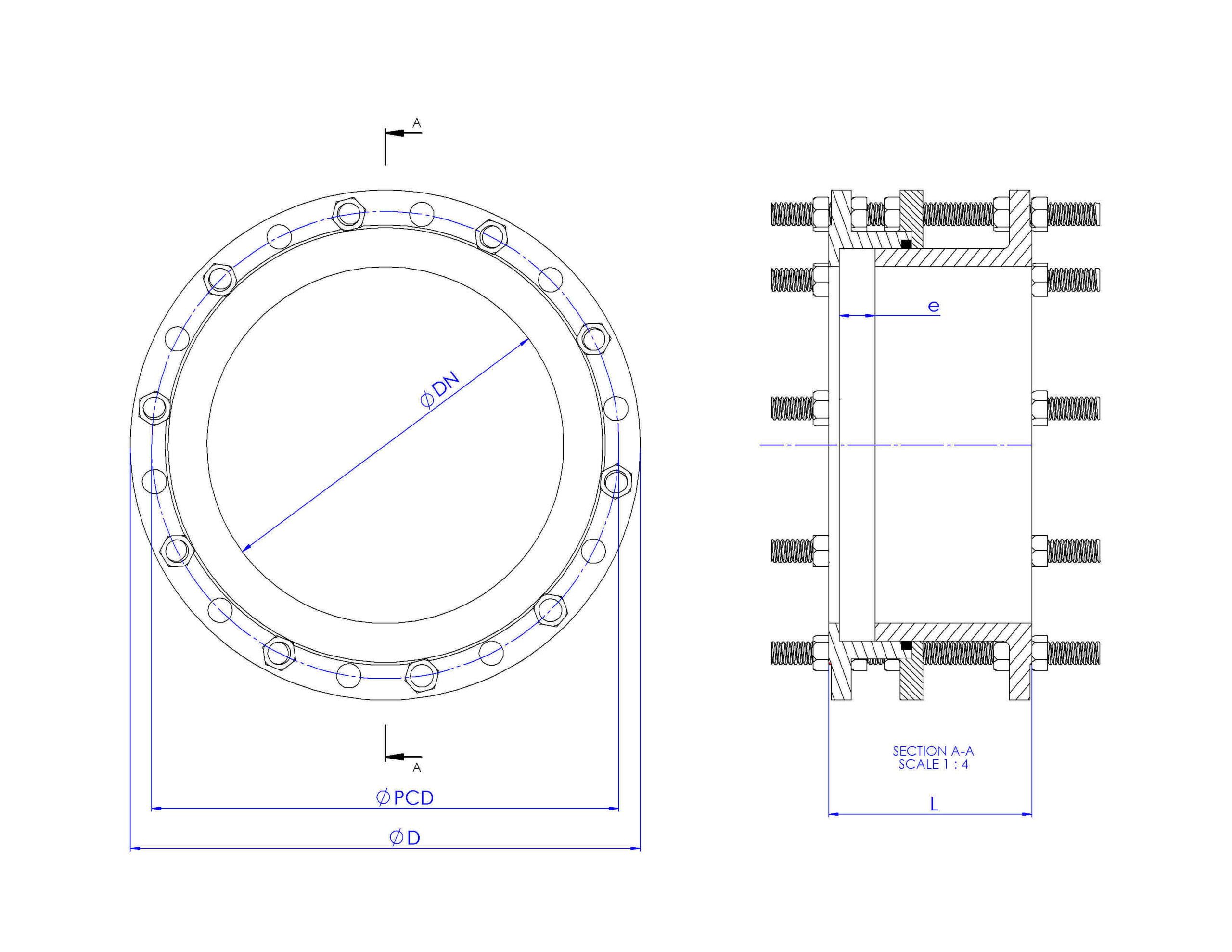

| DN | L | e | PN10 | PN16 | ||||
| D | PCD | N | D | PCD | N | |||
| 100 | 220 | 50 | 220 | 180 | 8 | 220 | 180 | 8 |
| 150 | 220 | 50 | 285 | 240 | 8 | 285 | 240 | 8 |
| 200 | 220 | 50 | 340 | 295 | 12 | 340 | 295 | 8 |
| 250 | 220 | 50 | 400 | 355 | 12 | 400 | 350 | 12 |
| 300 | 230 | 50 | 455 | 410 | 12 | 455 | 400 | 12 |
| 350 | 240 | 50 | 505 | 460 | 16 | 525 | 470 | 16 |
| 400 | 250 | 50 | 580 | 525 | 16 | 565 | 515 | 16 |
| 450 | 260 | 50 | 615 | 565 | 20 | 640 | 585 | 20 |
| 500 | 270 | 50 | 715 | 650 | 20 | 670 | 620 | 20 |
| 600 | 280 | 50 | 840 | 770 | 20 | 780 | 725 | 20 |
| 700 | 290 | 50 | 910 | 840 | 24 | 895 | 840 | 24 |
| 800 | 300 | 50 | 1025 | 950 | 24 | 1015 | 950 | 24 |
| 900 | 330 | 50 | 1125 | 1050 | 28 | 1115 | 1050 | 28 |
| 1000 | 360 | 50 | 1255 | 1170 | 28 | 1230 | 1160 | 28 |
| 1200 | 380 | 50 | 1485 | 1390 | 32 | 1455 | 1380 | 32 |
