Foot Valve

Foot Valve - Image 2

Foot Valve

StatusOut of stock

TagsFoot Valve, Valve, Valves

CategoriesFoot Valve

Additional information

Body	Ductile Cast Iron GGG 50
Disk	Ductile Cast Iron GGG 50
Retaining Disk Ring	Ductile Cast Iron GGG 50
Bottom Cover	Ductile Cast Iron GGG 50
Disk Sealing Ring	EPDM
O-Rings	EPDM
Shafts	Stainless Steel
Body Sealing Ring	Stainless Steel
Bolts	Steel
Bearings	Phosphor Bronze

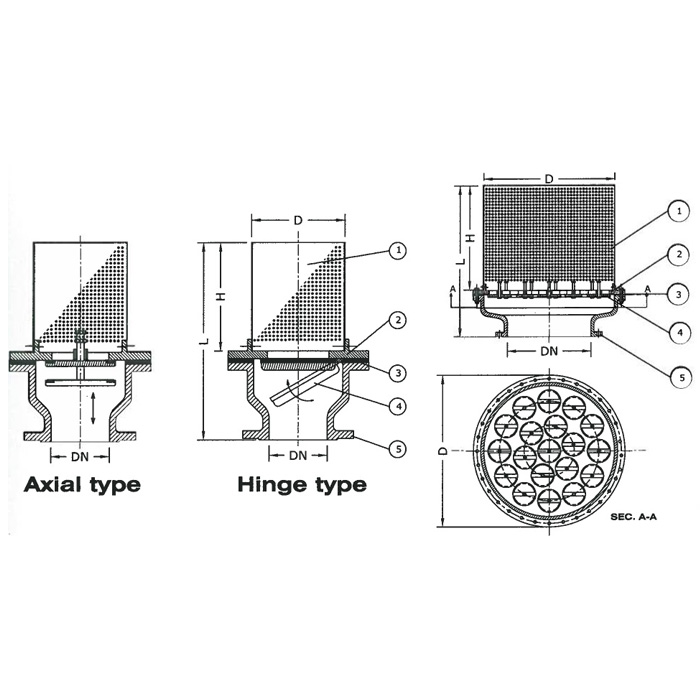

Single Door

DN	L	H	D
80	400	280	100
100	400	280	120
150	500	280	180
200	550	280	250
250	550	280	300
300	550	280	350

Multi Door

DN	L	H	D
400	600	380	500
500	800	500	600
600	1000	600	800
700	1200	800	1000
800	1450	1000	1255

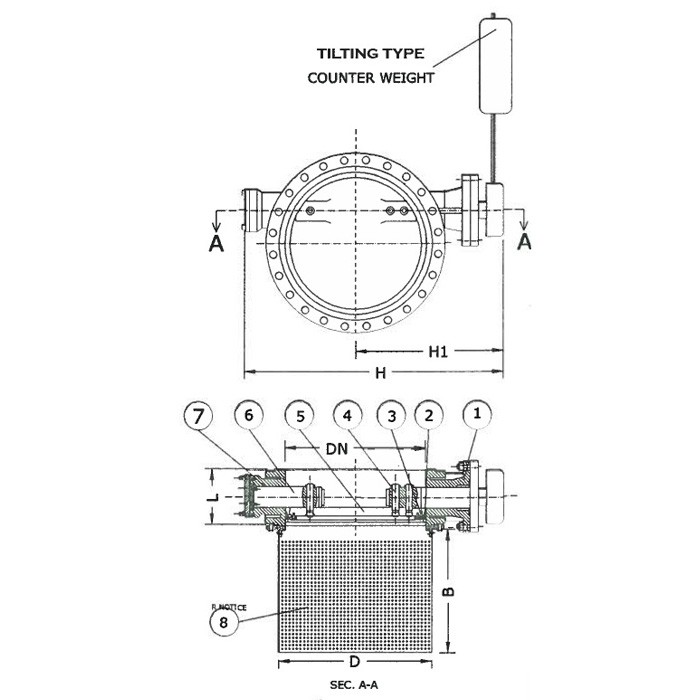

Tilting door

DN	L	H	H1	L	B
400	216	740	460	450	400
500	229	850	520	550	500
600	267	950	630	680	600
700	292	1050	695	780	700
800	318	1150	750	900	800
900	330	1300	865	1000	900
1000	410	1500	1005	1100	1000
1200	470	1850	1100	1300	1200
